AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V

Name: AIMM200 Medical Intelligent Insulation Monitoring Device DC24V
Brand: Acrel
Price: 2093 USD

Quality AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V for sale

Brand Name : Acrel

Model Number : AIM-M200

Certification : CE

Place of Origin : Jiangsu, China

MOQ : 1

Price : USD 2093 pcs

Payment Terms : T/T, L/C

Supply Ability : 2000000 pcs per year

Delivery Time : 5-8 work days

Packaging Details : 7.5X8.5X10.8 cm

Voltage : DC 24V

Accuracy Class : 5

Display Mode : Value and percentage

Contact Now

The AIM-M200 monitors the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M200 is designed to support insulation fault location

Main Characteristics

● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol

Technical Parameters

Input voltage	DC 18~36V
Power consumption	≤3VA
Resistance measuring range	10~999kΩ
Response value	50~999kΩ
Relative uncertainty	±10%
Response time	≤3s
Measuring voltage U	≤12V
Measuring current I	≤50uA
Load current monitoring Measuring Value	2.1~50A
Load current monitoring Alarm Value	5~50A
Load current monitoring Measuring accuracy	±5%

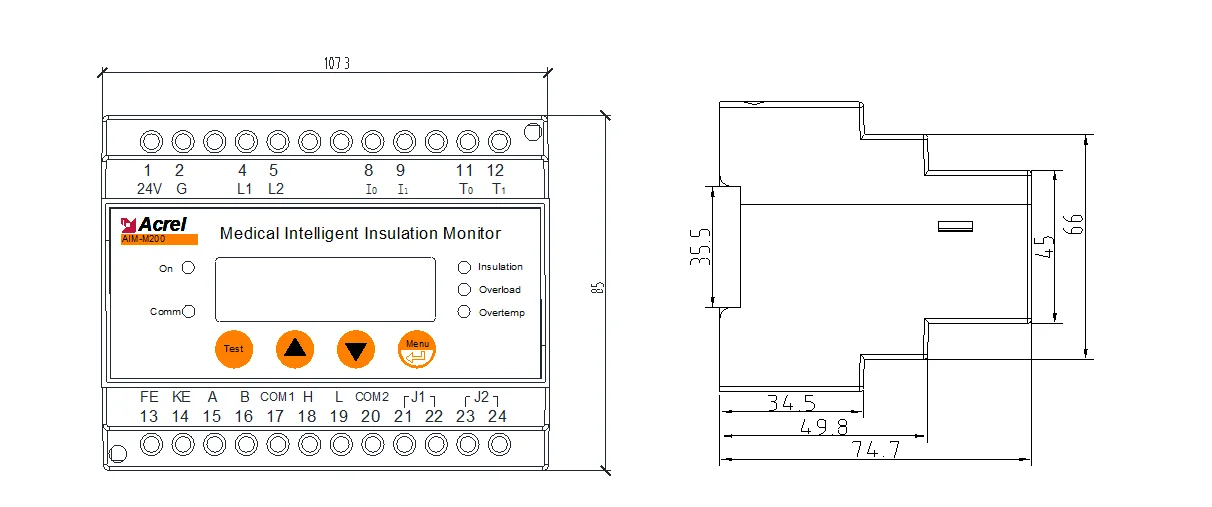

Dimension(mm)

AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V

Wiring

AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V
